CAVITY TRAYS Type X Intermediate 75mm Course 35º | RH | LONG LEAD – SPECIAL

Description

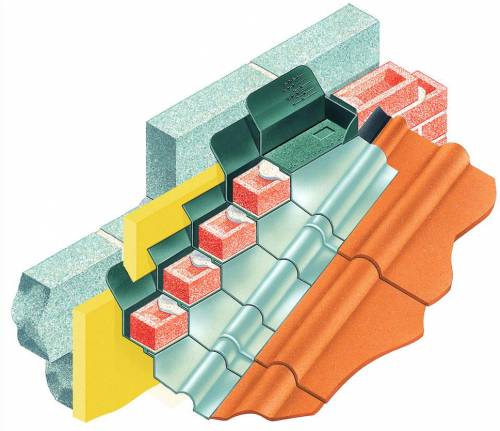

The Type X Cavitray is a preformed DPC unit with an attached ready-shaped flashing.

When laid in every course of a cavity wall external skin against which a sloping roof abuts, trays provide continuous stepped DPC protection running parallel with the slope.

Water and dampness in the exposed masonry skin above this stepped arrangement is prevented from gravitating downwardly below it. This the masonry skin is wet above the roofline but remains dry where it becomes an internal wall.

Copy & paste this link for the full technical information…

https://www.cavitytrays.co.uk/damp-proofing/view/1/163/1/type-x-cavitray


SPECIFICATION:

- 35º PITCH

- RIGHT HAND

- 75mm BRICKWORK COURSING

- LONG LEAD
